Follow these instructions to install the AEM Dual UEGO Sensors in a 1991-1997 3000GT/Stealth.

  • Wire the power and ground to the ECU to provide the most accurate signal transfer.
  • When using the AEM ECU connect the wideband (0-5v) signal to the ecu
  • When using the stock ecu you will need to route the narrowband (0-1v) signals back to the stock ecu if you replaced the stock sensors. Your wideband will have to be displayed on another gauge. The single channel uego gauge is more than enough for a piggy backed stock ecu.

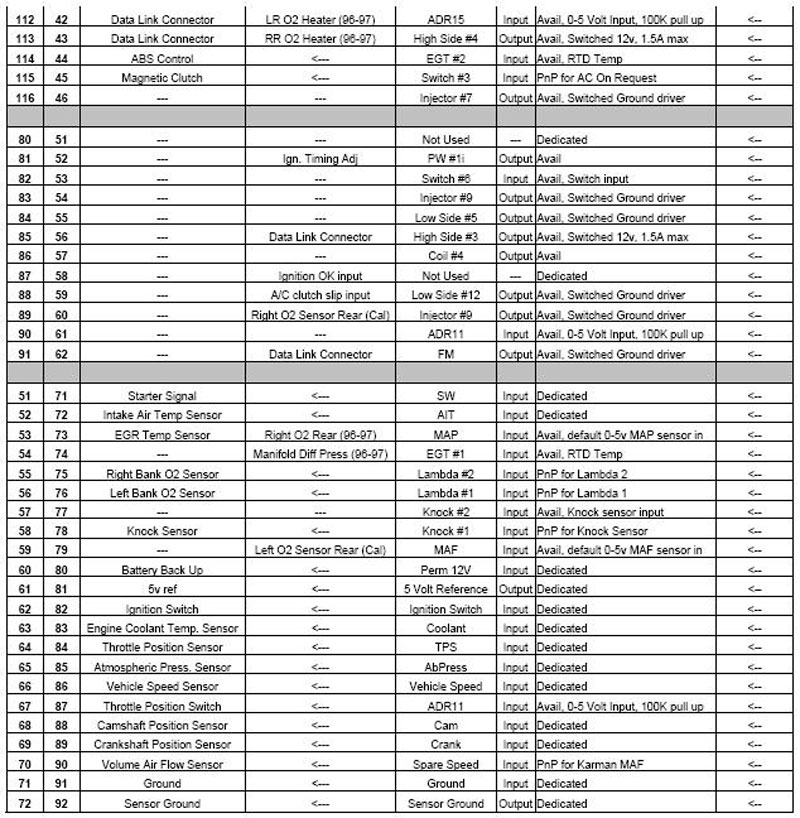

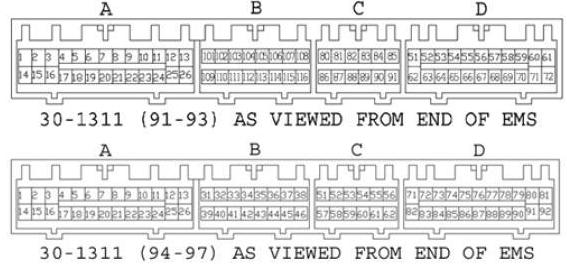

Dual uego.jpg Aem pin.jpg AEM pin1.jpg Aem pin2.jpg

--Steelythefez 11:18, 13 February 2007 (EST)
